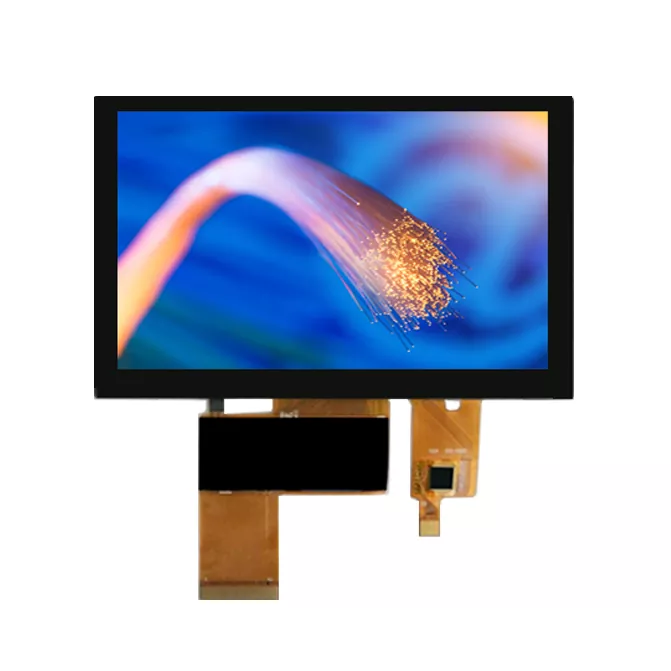

CTP ile 5.0 inç çok dokunaklı IPS TFT modülü

CTP'li bu Victronix 5.0 inç çok dokunaklı IPS TFT modülü, zorunlu uygulamalar için tasarlanmış sağlam bir 5.0 inç TFT LCD modülüdür. Keskin bir 800 × 480 çözünürlüğe ve canlı 16.7m renk ekrana sahiptir ve tüm görüntüleme açılarından olağanüstü görsel netlik sağlar. Çin'de profesyonel bir TFT modülü üreticisi ve tedarikçisi olarak, bu Victronix 5Inch TFT modülü, üstün uygulama performansı sağlamak için sertleştirilmiş (≥6H) kapak camı aracılığıyla pürüzsüz 5 parmaklı çoklu dokunuş etkileşimini mümkün kılmak için kapasitif dokunmatik desteği entegre eder.

modeli:VXT500MWSA-30C

Talep Gönder PDF olarak indir

Ürün Açıklaması

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 5.0 inch Multi Touch IPS TFT Module with CTP? At first, its wide viewing angle of 80° in all directions and a high contrast ratio of 900:1 make it more suitable for harsh industrial. Secondly, it integrates a 6-LED white backlight system (typical 18V at 60mA) with a typical brightness of 500cd/m², and a rated life of 50,000 hours, ensuring that it can be used for clarity and hours of use in different lighting situations. Besides, not only does it have a standard 24-bit RGB interface, compatible with popular controllers like the ST7265, but it operates reliably from -20°C to +70°C and withstands storage from -30°C to +80°C.

Victronix 5inch TFT module is widely used in HMIs, medical devices, portable instruments, and embedded systems, and the Victronix 5inch TFT module combines excellent optical performance, reliable touch functionality, and industrial-grade durability in a compact form factor.

General Specifications LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Grayscale inversion direction	-	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	5.0	inch
Active Area(W×H)	108x64.8	mm
Number of Dots	800x480	dots
Controller	ST7265	-
Power Supply Voltage	3.3	V

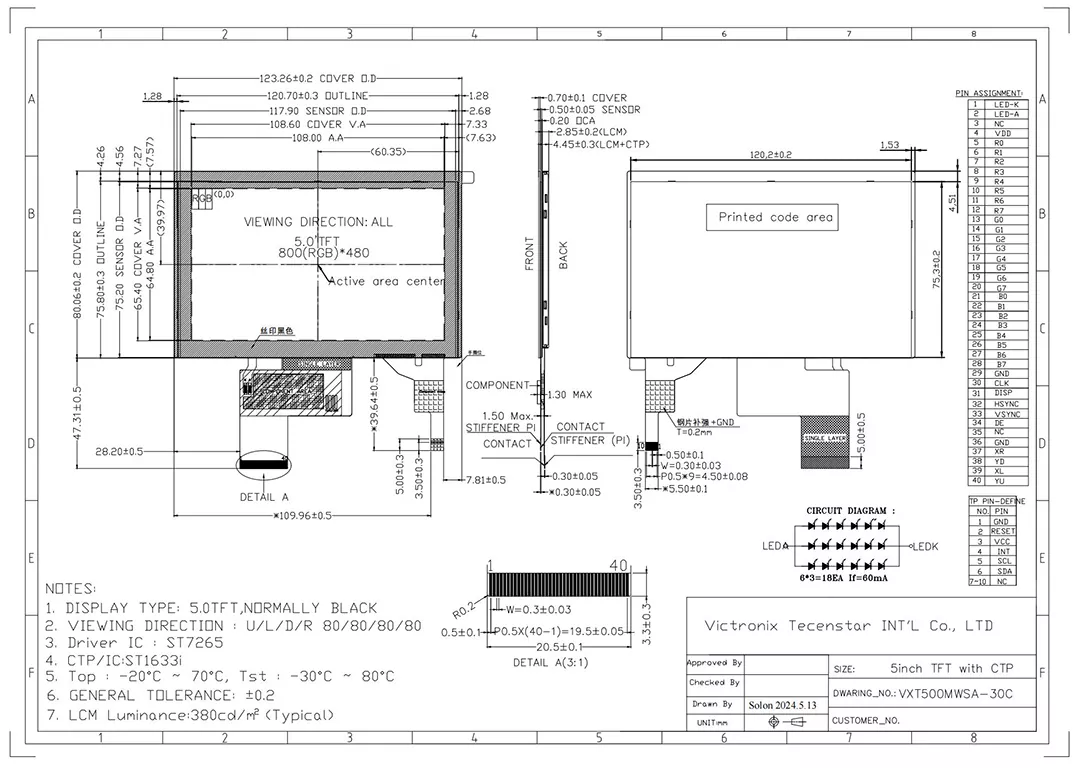

Outline Dimensions	123.26x80.06x4.45	mm
Backlight	6x3-LEDs (white)	pcs
Weight	---	g
Interface	24BITRGB	-

CTP Parameter

Item	Contents	Unit	Note
Cover View Area	108.60(H)X65.40(V)
CTP Resolution	800X480	dots
Interface Mode	IIC	-
Touch Mode	5 Human fingers multi-touch	-
Surfacehardness	>=6H	-
Transparency	>=85%	-
Accuracy	Centre +/-1.5,Edge +/-2.5mm	mm
CTP Controller	ST1633i	-
Power Supply Voltage	3.3	V
